Principle of Intelligent Photovoltaic Combiner Box

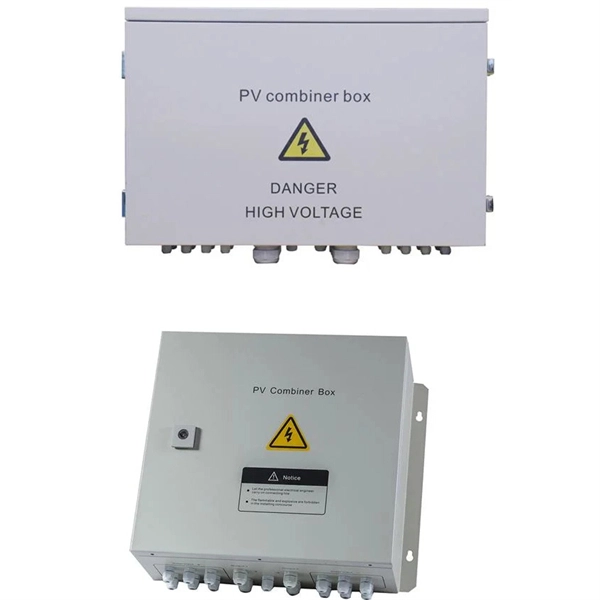

An intelligent PV combiner box consolidates multiple solar panel strings into a single output while providing advanced monitoring, protection, and optimization for efficient and safe solar power generation.Overview and FunctionA PV combiner box is a critical DC distribution device positioned between solar panel strings and the inverter. It collects the outputs of multiple strings—typically 6 to 24—into a single busbar output, simplifying wiring and improving system efficiency. Beyond basic current collection, intelligent combiner boxes integrate real-time monitoring, fault detection, and remote management, making them essential for modern solar installations ranging from residential rooftops to large utility-scale plants .Key Technical Features1. Intelligent MonitoringBuilt-in sensors track current, voltage, and temperature for each string.Data is transmitted to a control center or cloud system for remote real-time monitoring.Abnormalities, such as overcurrent or module failure, trigger alarms and log fault information, enabling precise fault location and faster maintenance . 2. Protection MechanismsTraditional combiner boxes provide basic overcurrent and overvoltage protection.Intelligent versions enhance safety by detecting hot spots, short circuits, and module failures.Advanced analysis allows the system to isolate faulty strings without affecting the entire array, improving reliability and reducing downtime . 3. System Optimization and ControlIntelligent combiner boxes can analyze operational data and adjust system parameters to optimize energy output.Some models integrate environmental data (e.g., light intensity, temperature) to support maximum power point tracking (MPPT).Integration with energy management systems (EMS) and energy storage enables comprehensive energy dispatch and predictive maintenance . 4. Simplified Installation and MaintenanceBy consolidating multiple strings, combiner boxes reduce wiring complexity, installation labor, and potential points of failure.Remote reset and monitoring capabilities can cut on-site maintenance time by up to 60%, especially in large-scale solar plants .ApplicationsResidential systems: Useful for installations with multiple strings, improving safety and monitoring.Commercial and industrial systems: Streamlines wiring and enhances reliability for medium to large arrays.Utility-scale solar plants: Critical for managing thousands of strings, enabling rapid fault detection, remote maintenance, and integration with EMS for optimized energy output .Future TrendsIncreasing AI and big data integration for predictive fault detection and autonomous optimization.Enhanced intelligent management to adapt to environmental changes and maximize energy conversion efficiency.Greater integration with smart grids and energy storage, making intelligent combiner boxes a central component in next-generation solar infrastructure . Intelligent PV combiner boxes are no longer just protective enclosures; they are smart hubs that ensure safety, efficiency, and operational intelligence, making them indispensable in modern solar energy systems.
