Fiber Optic Patch Cord Components and Adapters

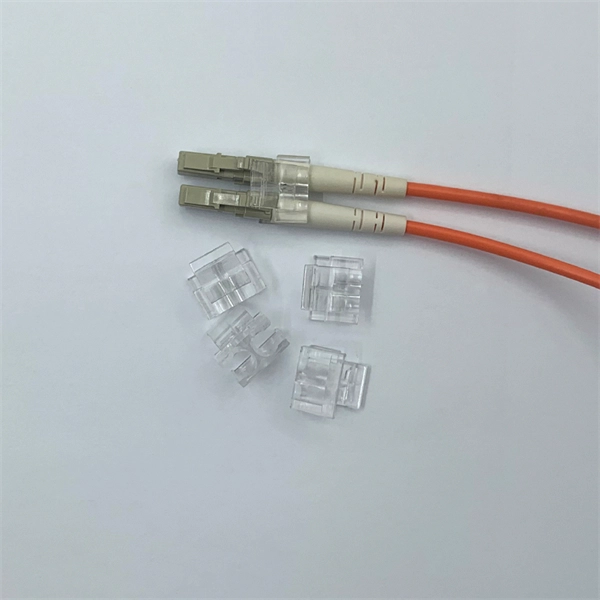

Fiber optic patch cords consist of a fiber optic cable, ferrule, and housing, and use various adapters to connect devices in optical networks.Components of Fiber Optic Patch CordsFiber Optic Cable The core of the patch cord is the optical fiber itself, which transmits light signals. Fibers are typically single-mode (OS1, OS2) for long-distance transmission or multimode (OM1–OM5) for shorter distances and higher bandwidth applications. The fiber is coated with an acrylic layer, reinforced with Kevlar, and insulated with PVC or LSZH jackets to protect against mechanical stress and environmental factors .Ferrule The ferrule is a cylindrical component that holds the fiber in precise alignment within the connector. It ensures minimal signal loss and accurate optical alignment. Common ferrule materials include ceramic, stainless steel, and plastic, with ceramic being preferred for high-performance applications .Housing/Connector Body The housing encases the ferrule and provides the interface for connecting to devices or adapters. It also protects the fiber end-face and allows for secure mating with other connectors. Connector types include plug-in (SC, LC, MU, E2000, MTRJ, MPO), screw-type (FC, D4, DIN, SMA), and slot-type (ST) designs .Fiber Optic AdaptersAdapters are used to join two patch cords or connect a patch cord to a device. They maintain precise alignment and can be simplex (single fiber) or duplex (two fibers). Common adapter types include:SC Adapters: Snap-in square connectors, widely used in PON and LAN systems.LC Adapters: Small form factor, push-pull connectors ideal for high-density data centers.FC Adapters: Screw-type connectors for secure, vibration-resistant connections.MPO/MTP Adapters: Multi-fiber connectors for high-density, high-bandwidth applications.ST Adapters: Bayonet-style connectors for legacy systems . Adapters may also feature APC (Angled Physical Contact) or UPC (Ultra Physical Contact) polish types to reduce back reflection and improve signal quality .Additional ConsiderationsJacket Types: Riser, plenum, PVC, and LSZH jackets are chosen based on installation environment and fire safety requirements .Connector Combinations: Patch cords can be LC-LC, SC-SC, or MPO to match network requirements.Applications: Fiber patch cords and adapters are essential in data centers, telecom networks, and enterprise LANs for connecting switches, servers, and optical distribution frames . By understanding these components and adapter types, network designers and technicians can ensure optimal performance, low signal loss, and scalable optical network infrastructure.
