Assembly of mains power distribution box

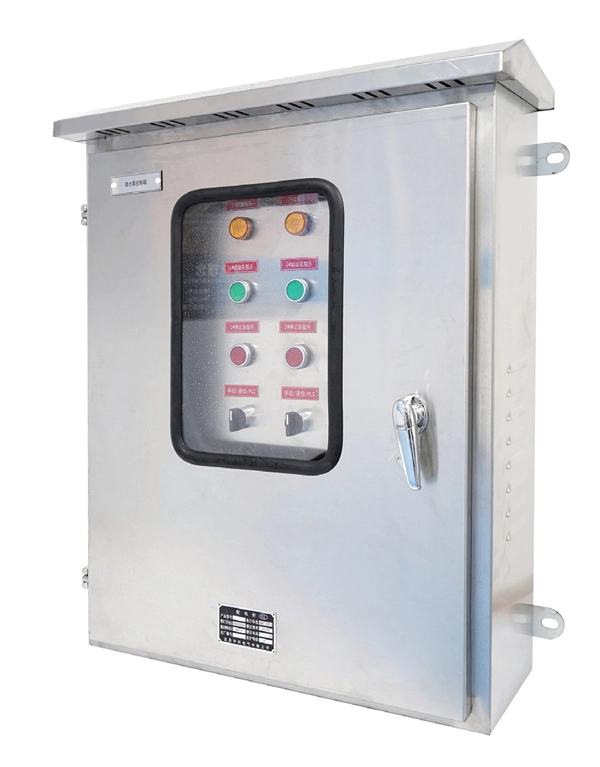

A main power distribution box safely distributes electricity from a single input to multiple circuits using breakers, protective devices, and organized wiring.Components NeededEnclosure/Panel Box: A metal or plastic cabinet to house all components, ensuring safety and accessibility .Main Circuit Breaker (MCB): Controls the overall power input and protects against overloads .Individual Circuit Breakers: Single-pole or double-pole breakers for each output circuit .Residual Current Device (RCD) or RCCB: Provides protection against electric shock and leakage currents .Bus Bars: For neutral and ground connections.Wiring: Appropriately rated wires for phase, neutral, and ground connections.Connectors and Terminals: For secure connections.Step-by-Step AssemblySelect a Safe Location: Install the box in a dry, accessible area away from water, flammable materials, or corrosive substances. Ensure enough space for ventilation and maintenance .Mount the Enclosure: Secure the panel box to a wall or support structure, leaving clearance for wiring and breaker access .Install the Main Breaker: Connect the incoming power supply (phase and neutral) to the main MCB. This acts as the primary control for the entire panel .Install Bus Bars: Mount neutral and ground bars inside the box. Connect the main neutral and ground wires to these bars .Install Individual Breakers: Place single-pole or double-pole breakers for each circuit. Connect the output wires from each breaker to the respective load circuits .Connect Protective Devices: If using RCDs or RCCBs, wire them according to the manufacturer's instructions to ensure leakage protection .Wire the Circuits: Route phase wires from breakers, neutral wires to the neutral bus, and ground wires to the ground bus. Ensure all connections are tight and properly insulated .Label Circuits: Clearly mark each breaker with the corresponding circuit or appliance for easy identification and maintenance .Test the System: Before powering up, verify all connections, check for short circuits, and ensure breakers are in the off position. Turn on the main breaker and test each circuit individually .Safety ConsiderationsAlways turn off the main power supply before working on the panel .Use properly rated breakers and wires for the expected load to prevent overheating or fire hazards .Ensure grounding and bonding are correctly implemented to protect against electric shock .If unsure, consult a licensed electrician to verify compliance with local electrical codes.Additional TipsConsider future expansion by leaving space for additional breakers .For outdoor or humid environments, use a weatherproof enclosure and consider adding a cooling fan or dehumidifier .Follow the wiring diagram specific to your panel type (single-phase or three-phase) to avoid miswiring . By following these steps and safety guidelines, you can assemble a main power distribution box that efficiently and safely distributes electricity to multiple circuits while protecting both equipment and users .
