How to install a two-box electrical distribution box

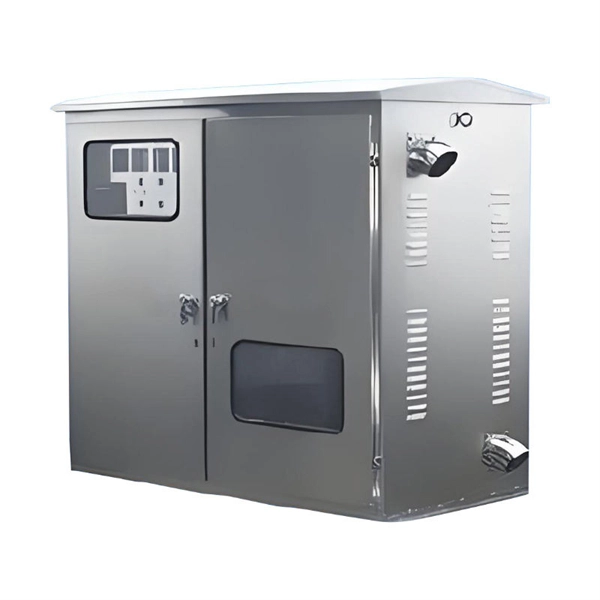

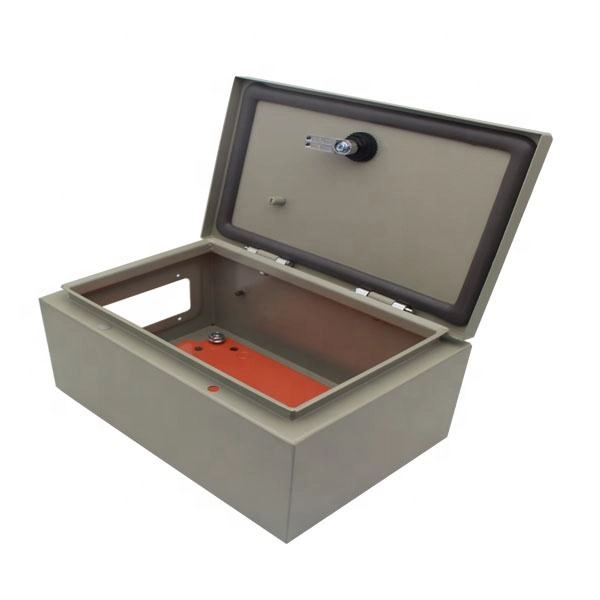

Installing a two-box electrical distribution box requires careful site preparation, secure mounting, proper wiring, and thorough testing to ensure safety and compliance.Step 1: Choose the Installation LocationSelect a dry, ventilated, and accessible location away from water, flammable, explosive, or corrosive substances. Ensure the site allows easy maintenance and is close to the main power supply. For outdoor installations, use a waterproof enclosure with a rain cover, and consider ventilation or dehumidifiers if humidity is high. Leave enough space around the boxes for heat dissipation and future expansion ( ).Step 2: Prepare Tools and MaterialsGather the necessary tools and materials:Screwdrivers, wire strippers, pliers, and a multimeterInsulation resistance testerExpansion bolts or mounting screwsTerminal blocks, zip ties, and insulating tapePersonal protective equipment: insulating gloves, safety glasses, and slip-resistant shoes ( )Step 3: Mount the BoxesAlign the two boxes on the wall or mounting surface.Mark and drill holes for expansion bolts.Securely fasten the boxes, ensuring they are level and stable.Maintain a recommended height of 1.5 meters above the ground for residential installations ( ).Step 4: Wire PreparationCut and strip wires to the appropriate length, ensuring the exposed conductor is neither too long nor too short.Organize wires to prevent tangling and contact with sharp edges.Reserve space for heat dissipation inside the boxes ( ).Step 5: Connect Input and Output LinesTurn off the main power supply and verify with a tester.Connect the incoming live wire to the main terminal.Connect phase wires to phase terminals, neutral wires to neutral terminals, and ground wires to ground terminals.Install circuit breakers in the appropriate slots and connect outgoing circuit wires to their respective breakers ( ).Step 6: Secure and Arrange WiringUse zip ties or clamps to neatly arrange wires.Ensure all connections are tight and conductive.Avoid overloading circuits by checking the box's capacity ( ).Step 7: TestingUse a multimeter to verify all connections and check for short circuits.Perform an insulation resistance test to ensure proper insulation between wires and the box.Test each circuit to confirm correct on/off operation ( ).Step 8: Final ChecksEnsure the boxes are properly closed and protected.Confirm that all safety measures, including grounding and insulation, are in place.Label circuits clearly for future maintenance ( ). Following these steps ensures a safe, organized, and code-compliant installation of a two-box electrical distribution system.
