Wiring and Installation of Main Distribution Box

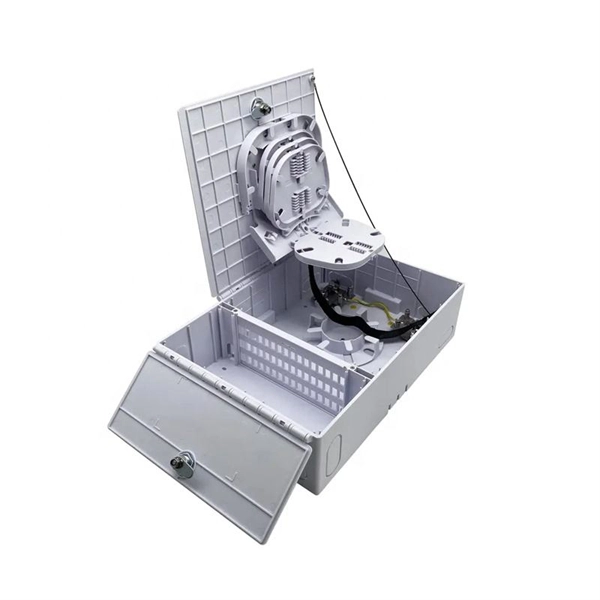

Proper installation of a main distribution box requires careful site selection, correct wiring practices, grounding, protective devices, and adherence to electrical standards.Site Selection and PlacementThe distribution box should be installed in a dry, well-ventilated, and accessible location, away from water, flammable, explosive, or corrosive substances . For residential setups, the recommended height is around 1.5 meters above the ground, while industrial installations may vary depending on surrounding equipment . Ensure the box is close to the main power supply to minimize power loss and facilitate maintenance . Outdoor installations require waterproof enclosures with appropriate IP or NEMA ratings, such as IP66 or NEMA 4, to protect against dust and moisture .Enclosure and ComponentsThe distribution box consists of an outer shell and internal electrical components. The enclosure protects against environmental hazards, while inside you will find circuit breakers, busbars, terminal blocks, and wiring . Choose materials based on the environment: steel for durability in harsh conditions and plastic for indoor use . Ensure the enclosure has sufficient capacity for current wiring and future expansion.Wiring SpecificationsPower Off: Always disconnect the main supply before wiring .Wire Type: Use high-temperature resistant copper wires with cross-sectional areas suitable for the load .Connections: Follow the principle: phase wire to phase terminal, neutral to neutral terminal, ground to ground terminal .Neatness: Arrange wires neatly, secure with ties, and avoid exposed copper to prevent short circuits .Testing: Perform insulation and continuity tests using a multimeter before powering on .Protective DevicesMain MCB: Acts as the main switch; typically a double-pole MCB rated according to the total load .Output MCBs: Single-pole or double-pole MCBs for individual circuits .RCCB: Provides protection against leakage currents and electric shocks; commonly 30mA rating for domestic installations .Fuses and Surge Protectors: Each circuit should have its own protection to prevent overloads and surges .Grounding and SafetyMetal parts of the box, electrical boards, and appliances must be properly grounded .Protective neutral wires should be connected reliably through terminal blocks .Leakage protection is essential for additional safety .Personal Protective Equipment (PPE): Use insulating gloves, safety glasses, and slip-resistant shoes during installation .Installation ProcedureMark and Drill: Mark the installation points and drill holes for expansion bolts .Mounting: Secure the box using brackets or screws, ensuring it is level and stable .Wire Stripping and Connection: Strip wires to the correct length, connect to terminals, and ensure tight, secure contacts .Final Checks: Test insulation, continuity, and verify that breakers and fuses match the load requirements .Labeling: Clearly label all circuits for easy identification and future maintenance .MaintenanceSchedule regular inspections to check for loose connections, corrosion, or overheating. Modular designs and proper labeling facilitate upgrades and troubleshooting . By following these guidelines, the main distribution box will operate safely, comply with electrical standards, and provide reliable power distribution for all connected circuits.
