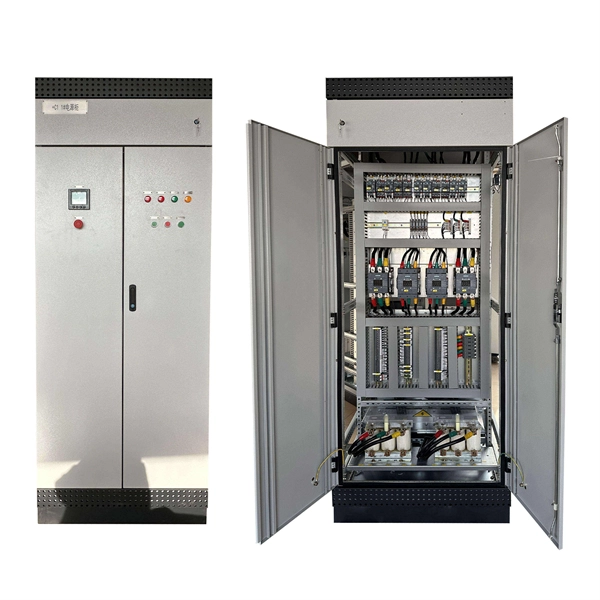

Switchgear busbar layout method

An optimal busbar layout balances current-carrying capacity, thermal performance, mechanical strength, insulation, and compliance with standards to ensure safe and reliable switchgear operation.Key Principles of Busbar Layout1. Material Selection: Copper is preferred for high conductivity and smaller cross-section, while aluminum is lighter and cost-effective. Copper busbars reduce heat generation and provide stable performance, though at higher cost and weight . 2. Busbar Configuration:Horizontal main busbars act as the backbone, distributing current across the switchgear.Vertical risers connect horizontal busbars to functional units or outgoing feeders.Neutral and ground buses should be clearly separated and supported.Flat busbars maximize surface area for cooling and simplify bolted connections, while tubular or laminated designs can improve cooling and save space in compact layouts . 3. Spacing and Insulation: Proper spacing between phases and from grounded surfaces prevents short circuits. Insulated or enclosed busbars allow tighter layouts and enhance safety, while bare busbars require careful creepage and clearance distances . 4. Thermal Management: Busbars must carry rated current without exceeding permissible temperature rise. Wider, thinner bars often improve AC resistance and heat dissipation. Ventilation, plating, and layering can further optimize thermal performance . 5. Mechanical Strength and Short-Circuit Withstand: Busbars must withstand electrodynamic forces during short-circuit events. Supports, bracing, and insulators should be designed to prevent deformation under high fault currents . 6. Standardization and Modularity: Using standardized busbar widths and thicknesses across different current ratings simplifies manufacturing, improves modularity, and ensures repeatable performance. Horizontal busbars serve as the backbone, while vertical busbars act as distribution spines to functional units . 7. Compliance with Standards: Layouts must adhere to IEC 61439-1/-2 for low-voltage switchgear or UL 1558/IEEE C37.20.1 for North American systems. For medium-voltage switchgear, IEC and ANSI/IEEE standards define thermal, mechanical, and electrical performance requirements .Practical RecommendationsUse rigid copper busbars for main current paths and flexible connections for breaker interfaces.Maintain adequate spacing for insulation and creepage distances.Optimize busbar cross-section for current rating and thermal limits rather than simply oversizing.Consider laminated or hollow busbars in high-current or compact designs to improve cooling.Ensure mechanical supports are robust to handle short-circuit forces.Design for modularity, allowing easy expansion or replacement of functional units. By integrating these principles, a switchgear busbar layout can achieve efficient current distribution, minimal heat buildup, mechanical stability, and compliance with international standards, ensuring long-term reliability and safety .
